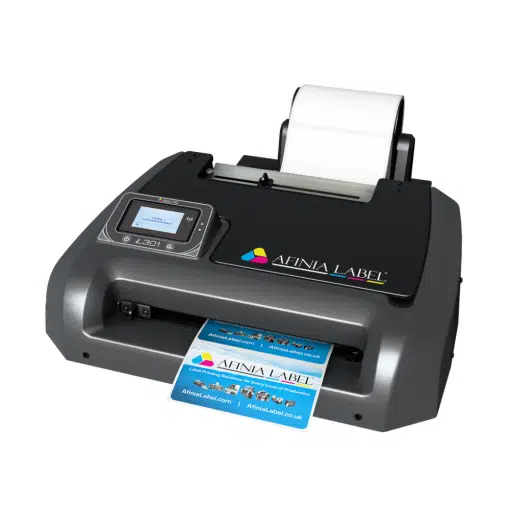

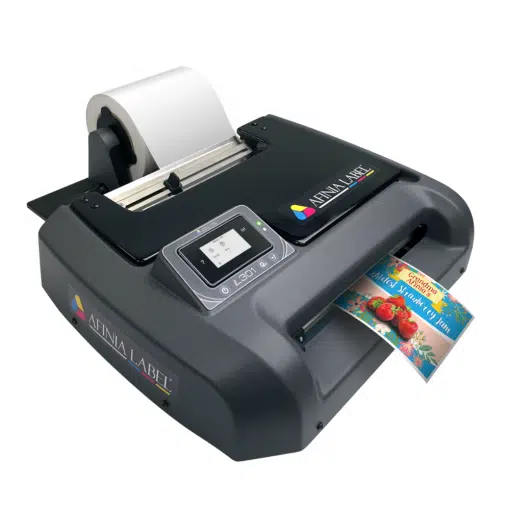

Afinia L301 Colour Label Printer
Print labels for your business on demand without worry about waste with the L301 Color Label Printer from Afinia. Using HP Thermal Inkjet technology, you will be able to create vivid, sharp labels at resolutions up to 4800 x 1200 dpi in color and 1200 x 1200 dpi in black. This unit works quickly as well, with speeds up to 1.8″ per second with 2.2″-wide labels in draft mode. Also, it supports a variety of media types and sizes via a manual unwinder and manual cutter, enabling the production of labels as small as 1.75 x 0.75″ or as large as 6 x 48″.
For simple, intuitive operation, the L301 is equipped with a front panel touchscreen. Also, it has auto calibration and auto detection of gap and black marks for fast setup. Additionally, it is compatible with Windows operating systems and has standard USB 2.0 connectivity.
Key Features
- The Afinia L301 color label printer is a compact unit designed for small businesses that need to quickly, efficiently, and affordably print their own “prime” product labels. Using tried-and-true HP thermal inkjet technology, the Afinia L301 label maker produces beautiful full color labels at a resolution of up to 4800 dpi.
- The Afinia L301 color label printer uses two ink cartridges, one tricolor cartridge containing cyan, magenta, and yellow ink, and the other containing black ink only. This is the most economical setup because color label printers that rely on a single CMY ink cartridge must consume the cyan, magenta, and yellow inks to create black (the most used color in typical label designs).
- The Afinia L301 perfectly balances quality, price, and performance, and it does so in a compact unit that’s perfect for printing beautiful color labels on-demand. This color label printer is ideal for businesses that want lower overall costs and greater control. Not only can you use the Afinia L301 color label printer to print product labels, you can also do so in limited quantities, opening the door to seasonal or personalized labels.
Additional Features
- HP Thermal Inkjet printing technology allows for the creation of sharp and vivid labels at resolutions up to 4800 x 1200 dpi in color and 1200 x 1200 dpi in black.
- Print speeds of up to 1.8″ per second with a 2.2″-wide label in draft mode.
- Accepts two individual ink cartridges, a pigment-based black and a dye-based tri-color.
- Offers label sizes ranging from 1.75 x 0.75″ up to 6 x 48″.
- Supports paper, polyester, polypropylene, and vinyl label stocks with additional support for gap, black mark, and continuous media.
- Auto calibration and auto detection of gap and black marks.
- Manual unwinder and manual cutter are provided.
- Front panel touchscreen for intuitive control.
- Compatible with Windows 7, 8, and 10 in 32- or 64-bit.
- USB 2.0 connectivity.
Specifications
PRINTER | |
Print Technology | HP Thermal Inkjet |
Inks | Black single (29.1ml) pigment ink cartridge; Tri-color single (22.5ml) dye ink cartridge |
Print Resolution | Color: Up to 4800 x 1200 optimized dpi; Black: Up to 1200 x 1200 rendered dpi |
Print Speed | Artwork-dependent, Approximately 1.8 in/sec (4.6 cm/sec) printing a 2.2 in (56 mm) wide image in normal mode |
Print Width | 1.75′′ – 6′′ (44.5mm–152.4mm) |
Print Length | 0.75′′ – 48′′ (19mm–1219.2mm) |
MEDIA | |
Media Types | Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks |
Thickness | 0.004′′–0.01′′ (0.1mm–0.3mm) |
Maximum Roll Diameter | 6′′ (152.4mm) |
Core Diameter | Requires 3′′ (76.2mm) cardboard core |
Media Sensors | Gap, continuous, black mark. Auto-callibrating |
Die-Cut Label Gap | Minimum 0.125′′ (3.0mm) Maximum 0.3′′ (8.0mm) |
Black Mark | 0.125′′ (3.0mm) – 0.3mm′′ (8.0mm) long, Left side position |
GENERAL | |
Cutter/Sheeter | Manual slide cutter |
Interfaces | USB 2.0 connection |
Operating System | Windows 7+ (32 and 64 bit) |
Display | Front panel LCD with buttons |
Operating Temperature | 41°–104°F (5°–40°C) |
Storage Temperature | -40°–140°F (-40°–60°C) |
Operating Humidity | 15-80% RH, 20–80% recommended |
Non-Operating Humidity | 10-90% |
Dimensions | 19.0′′ (482.6mm) W x 22.0′′ (558.8mm) D x 7.2′′ (177.8mm) H |
Agency Certifications | CE, FCC |
Warranty | One year |
Afinia Part Numbers | L301 Printer: 26849 Black Ink Cartridge: 26562 Tri-color Ink Cartridge: 26548 |
