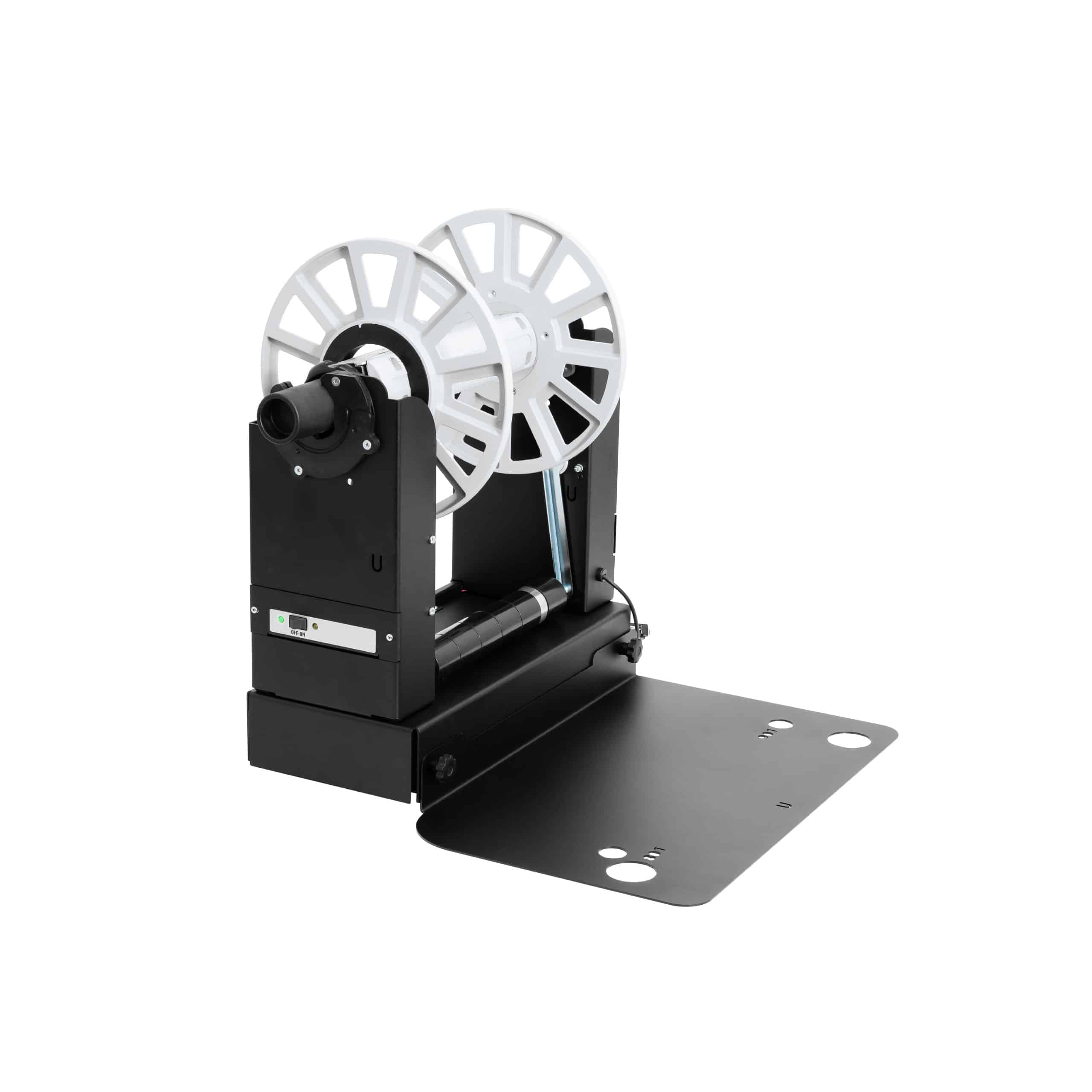

Afinia XL Large Capacity Unwinder for L801 and L901
$1,980.00
The Afinia Label XL Unwinder system is the ideal accessory for companies looking to run high-volume, continuous jobs in a roll-to-roll configuration.
| MAX SPEED | MAX WIDTH | MAX ROLL OD | CORE DIAMETER |
|---|---|---|---|
|
51 RPM
|
9.4″
|
10″ (250MM)
|
3″ (76.2MM)
|
Afinia XL Large Capacity Unwinder for L801 and L901
Roll-to-roll label production
For high-volume, continuous printing
The Afinia Label XL Unwinder system is the ideal accessory for companies looking to run high-volume, continuous jobs in a roll-to-roll configuration.
The XL system uses industrial up-rated motors to ensure that heavier rolls can be handled with ease. A user-controlled clutch allows for easy roll tension adjustment, allowing narrow labels to be rewound precisely without excessive tension that normally causes print errors and issues with wandering material. The maximum roll diameter of 250mm (10 in) allows for a longer uninterrupted workflow, delivering labels directly onto a roll ready for application.
- High-volume roll-to-roll production
- Ideal for the Memjet-powered L901
- Sturdy steel construction
- Up-rated, industrial-quality motors
Options
The XL Label Unwinder and Rewinder can be used independently, or together as a complete roll-to-roll system.
Rolls are unwound from and rewound to a standard 3” core. The option to adjust the direction of rotation (clockwise or counterclockwise) allows labels either to be face-in or face-out.
Designed for heavy industrial use
Thanks to their revolutionary design and rugged construction, XL rewinders and unwinders are perfect for high-volume and heavy-duty jobs. Up-rated motors make roll weight a non-issue. The motor is located inside the core holder and—once the job is done—users can easily remove the core holder and printed material.
